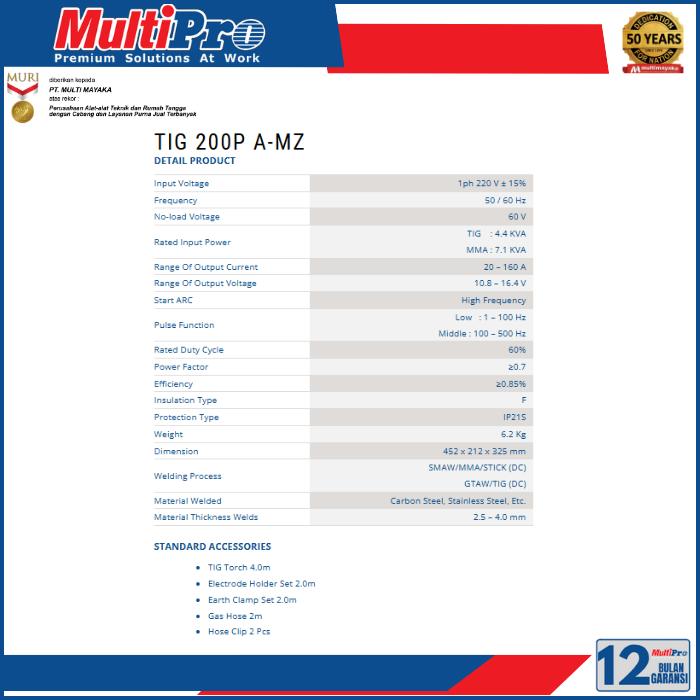

DETAIL PRODUCT
Input Voltage 1ph 220 V ± 15%
Frequency 50 / 60 Hz
No-load Voltage 60 V
Rated Input Power TIG : 4.4 KVA
MMA : 7.1 KVA
Range Of Output Current 20 – 160 A
Range Of Output Voltage 10.8 – 16.4 V
Start ARC High Frequency
Pulse Function Low : 1 – 100 Hz
Middle : 100 – 500 Hz
Rated Duty Cycle 60%
Power Factor ≥0.7
Efficiency ≥0.85%
Insulation Type F
Protection Type IP21S
Weight 6.2 Kg
Dimension 452 x 212 x 325 mm
Welding Process SMAW/MMA/STICK (DC)
GTAW/TIG (DC)
Material Welded Carbon Steel, Stainless Steel, Etc.
Material Thickness Welds 2.5 – 4.0 mm

STANDARD ACCESSORIES

TIG Torch 4.0m
Electrode Holder Set 2.0m
Earth Clamp Set 2.0m
Gas Hose 2m
