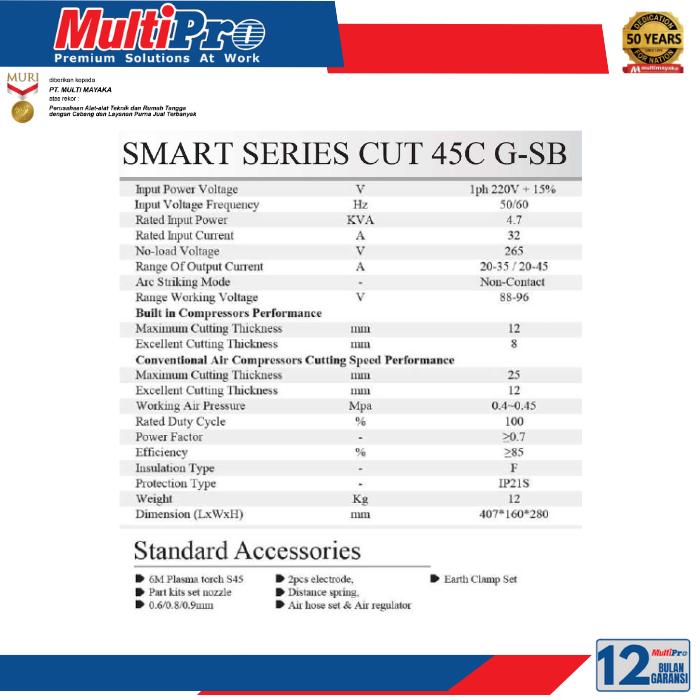

Mesin Las Multipro CUT 45C G-SB Plasma Cutting.
DETAIL PRODUCT
Input Power Voltage : 1ph 220 V ± 15%
Input Voltage Frequency : 50 / 60 Hz
Rated Input Power : 4.7 KVA
Rated Input Current : 32 A
No-load Voltage : 265 V
Range of Output Current : 20-35 / 20-45 A
Arc Striking Mode : Non-Contact
Range Working Voltage : 88-96 V
Built-in Compressors Performance
Maximum Cutting Thickness : 20 mm
Excellent Cutting Thickness : 10 mm
Conventional Air Compressors Cutting Performance
Maximum Cutting Thickness : 25 mm
Excellent Cutting Thickness : 12 mm
Working Air Pressure : 0.4 – 0.45 Mpa
Rated Duty Cycle : 100 %
Power Factor ≥ : 0.7
Efficiency ≥ : 85%
Insulation... Read More Mesin Las Multipro CUT 45C G-SB Plasma Cutting.
DETAIL PRODUCT
Input Power Voltage : 1ph 220 V ± 15%
Input Voltage Frequency : 50 / 60 Hz
Rated Input Power : 4.7 KVA
Rated Input Current : 32 A
No-load Voltage : 265 V
Range of Output Current : 20-35 / 20-45 A
Arc Striking Mode : Non-Contact
Range Working Voltage : 88-96 V
Built-in Compressors Performance
Maximum Cutting Thickness : 20 mm
Excellent Cutting Thickness : 10 mm
Conventional Air Compressors Cutting Performance
Maximum Cutting Thickness : 25 mm
Excellent Cutting Thickness : 12 mm
Working Air Pressure : 0.4 – 0.45 Mpa
Rated Duty Cycle : 100 %
Power Factor ≥ : 0.7
Efficiency ≥ : 85%
Insulation Type : F
Protection Type : IP21S
Weight : 12 Kg
Dimension : 407 x 160 x 280 mm


STANDARD ACCESSORIES
– 6M Plasma Torch S45
– Part Kits Set Nozzle
– 0.6/0.8/0.9 mm
– 2 pcs Electrode
– Distance Spring
– Earth Clamp Set & Air Regulator... Read Less
